Seismic Tomography for Ground Investigations in St. Catharines

Practical geotechnics, field-tested.

LEARN MORE

The geophone spread cables stretch out across the site, clipped into 24-channel nodes, while the accelerated weight drop stands ready on its trailer. This is the field setup for seismic tomography in St. Catharines—a city where the buried Queenston Shale and fractured Lockport Dolomite create a subsurface puzzle that standard drilling alone rarely solves. The crew lays out the array along a survey line, spacing receivers at intervals tight enough to capture lateral velocity changes that might signal a buried paleochannel or solution cavity. Once the hammer strikes and the first shot triggers, the seismograph records arrival times across the entire spread. Processing back at the office converts those travel-time picks into a velocity model, rendering a cross-section that reveals how competent the rock really is beneath the glacial till. In a city of roughly 140,000 people situated along the Niagara Escarpment and Twelve Mile Creek valley, we often integrate this data with test pits to ground-truth shallow overburden where the tomographic profile indicates an abrupt velocity transition near surface.

A tomographic velocity cross-section directly beneath St. Catharines often reveals what a borehole misses: the lateral extent of a weathered zone that governs both excavation stability and groundwater inflow.

Our service areas

Our approach and scope

St. Catharines sits astride two very different geological domains: the gently dipping Silurian carbonates of the escarpment face to the south and the softer red shales of the Queenston Formation that underlie much of the city’s downtown and northern neighbourhoods. The sharp winter freeze-thaw cycles in the Niagara Peninsula, where temperatures can swing from -15°C to +5°C within a single week, accelerate joint widening in the near-surface bedrock layer. Seismic refraction tomography becomes particularly useful under these conditions because the method senses velocity contrasts that correlate directly to fracture density and weathering grade—something a borehole alone may miss if it happens to intersect a tight block between open joints. Reflection profiling, on the other hand, images deeper horizons where the interface between the dolostone caprock and the underlying shale controls groundwater flow paths. Our field teams have worked across sites from the industrial parks near the Welland Canal to the vineyard-covered benches below the escarpment, observing how the same Lockport Formation can present P-wave velocities anywhere from 3,200 m/s in massive unweathered sections down to 1,500 m/s where it has been heavily karstified.
Seismic Tomography for Ground Investigations in St. Catharines
Technical reference — St. Catharines

Local geotechnical context

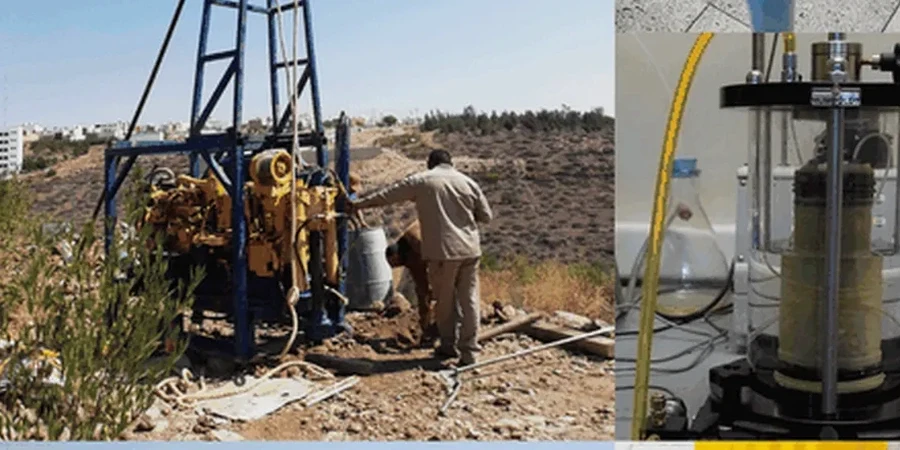

Many St. Catharines properties developed in the 1950s through 1970s were built on the assumption of uniform bedrock, but the escarpment’s retreat history left behind a hidden legacy of infilled solution features and irregular rockhead. We have seen sites where a drill rig hit competent dolostone at 4 m depth in one location while, just 15 m away, the tomogram showed a steep-walled trough filled with saturated organic silt extending past 12 m—a feature that would have gone undetected without a continuous imaging method. In the area of the former Third Welland Canal alignment and along the buried tributaries feeding Twelve Mile Creek, relic channels cut into the shale can produce differential settlement patterns that compromise shallow foundations. Seismic reflection sections, when processed with careful statics corrections for the variable till cover, help map those paleotopographic lows before foundation design is finalized.

Need a geotechnical assessment?

Reply within 24h.

Email: info@geotechnicalengineering.co

Relevant standards

NBCC 2020 (National Building Code of Canada – seismic hazard and site classification), CSA A23.3 (Design of concrete structures – foundation references), ASTM D5777-18 (Standard Guide for Using the Seismic Refraction Method for Subsurface Investigation), ASTM D7128-18 (Standard Guide for Using the Seismic Reflection Method for Shallow Subsurface Investigation), Ontario Building Code (O. Reg. 332/12) – geotechnical input requirements

Technical parameters

ParameterTypical value
Typical P-wave velocity (competent Lockport Dolomite)3,200 to 4,800 m/s
Typical P-wave velocity (weathered/karstic dolostone)1,200 to 2,300 m/s
Typical P-wave velocity (Queenston Shale, unweathered)2,400 to 3,100 m/s
Typical P-wave velocity (glacial till, overburden)400 to 1,100 m/s
Maximum imaging depth (refraction, 115 m spread)Approximately 25 to 35 m below surface
Geophone spacing (typical high-resolution layout)2 to 5 m
Seismic sourceAccelerated weight drop or sledgehammer on steel plate

Questions and answers

How deep can seismic tomography image beneath a typical St. Catharines site?

With a 115-metre spread and an accelerated weight drop source, refraction tomography reliably images to depths between 25 and 35 metres in the local dolostone and shale formations. Reflection profiling can reach 60 to 80 metres when the target interface has a sufficient acoustic impedance contrast, such as the contact between the Lockport Dolomite and the underlying Queenston Shale.

What does a seismic tomography survey cost for a residential or commercial lot in St. Catharines?

For a typical single-line refraction survey covering a building footprint, the cost ranges from CA$3,840 to CA$6,740 depending on the spread length, number of shot points, and site access conditions. Steep escarpment slopes or heavily paved urban sites with high background vibration may require additional processing time, which can influence the final figure.

Can seismic methods detect karst cavities in the Lockport Dolomite?

Air-filled or clay-filled solution cavities produce a measurable drop in P-wave velocity that appears as a low-velocity anomaly on the tomogram. While the method detects the velocity signature of a cavity or highly fractured zone, confirmatory drilling is recommended to verify the exact nature and dimensions of the feature before design decisions are made.

How long does a seismic tomography survey take on site?

A single refraction line with 24 geophones and five to seven shot points typically requires half a day of field work, including setup, shooting, and demobilization. Data processing and delivery of the final velocity cross-section with interpretation notes usually takes three to five business days after acquisition.
