Shallow Foundation Design in St. Catharines: Geotechnical Logic for the Garden City

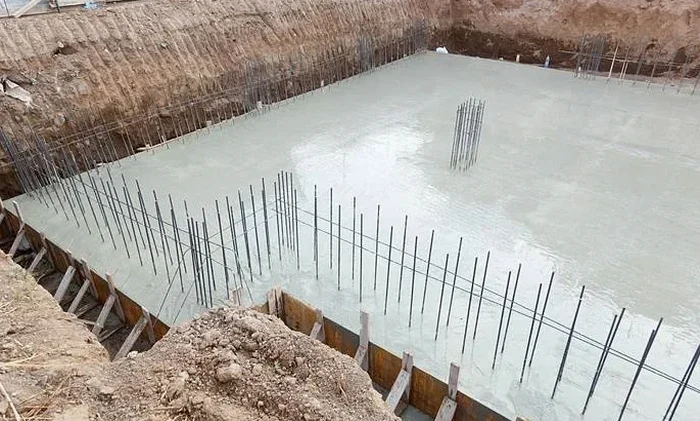

A three-storey mixed-use project on St. Paul Street faced a familiar dilemma last spring: the site investigation revealed a dense silty clay till at depth, but the upper two metres were a mix of urban fill and weathered shale fragments from the escarpment. The structural engineer needed a bearing capacity of 150 kPa for a cost-effective shallow foundation design, yet the variability in the first metre alone made a conventional assumption risky. Rather than defaulting to deep foundations, our geotechnical team proposed a targeted program of test pits and plate load testing. By exposing the contact between the fill and the intact till, we confirmed a consistent bearing stratum at 1.8 metres below grade. This kind of site-specific judgment defines shallow foundation design in St. Catharines, where the transition from the Lake Iroquois plain to the Niagara Escarpment creates soil profiles that can shift dramatically within a single city block. The key is not just calculating settlement — it is knowing what lies beneath the asphalt before the first shovel breaks ground.

In St. Catharines, the best shallow foundation design starts with understanding the contact between urban fill and the Halton Till — miss that boundary, and you inherit settlement problems.

Our approach and scope

The surficial geology of St. Catharines is dominated by the Halton Till, a dense, overconsolidated glacial deposit that provides excellent bearing capacity — often exceeding 200 kPa where it remains intact. However, the city’s topography complicates the picture. From the low-lying areas near Twelve Mile Creek, where alluvial silts and soft clays can extend to depths of 4 to 5 metres, to the benchlands below the escarpment where fractured Queenston Formation shale can create differential settlement risks, a single foundation type rarely suits every lot. In our experience, the most reliable shallow foundation design integrates data from in-situ testing with careful assessment of the groundwater regime — especially in spring when the water table rises within 2 metres of the surface in many north-end neighbourhoods. For sites where the till is thin or the fill zone is thicker than anticipated, we often recommend supplementing the investigation with an SPT drilling program to verify refusal depth and confirm that the design bearing stratum extends uniformly across the building footprint.

Local geotechnical context

The most common mistake we see in St. Catharines is treating the entire city as uniform glacial till and skipping the site-specific investigation. Contractors who rely solely on municipal soil maps or neighbouring borehole logs can miss pockets of compressible organic silt buried in old drainage channels — remnants of the pre-urban landscape that crisscross the area south of the QEW. These lenses, sometimes less than 10 metres wide, can cause differential settlement severe enough to crack foundation walls within the first five years. Another recurring problem involves excavating to the design bearing depth without accounting for the seasonal groundwater table: a footing poured in a wet, softened till in April will not perform the same as one placed on dry, dense till in August. The Ontario Building Code, referenced by the city’s building department, mandates a geotechnical investigation for most commercial and multi-residential projects, but the quality of that investigation — the number of test pits, the depth of exploration, the laboratory confirmation — determines whether the shallow foundation design is truly reliable or just an optimistic guess.

Relevant standards

NBCC 2015 (National Building Code of Canada) — structural design provisions, seismic hazard values for St. Catharines, CSA A23.3:14 — Design of Concrete Structures, including footing and foundation requirements, ASTM D1194 / D1195 — Standard Test Methods for Bearing Capacity of Soil (Plate Load Test, in-situ verification for shallow foundations), Ontario Building Code (OBC) — Part 4, structural design and geotechnical investigation requirements, Canadian Foundation Engineering Manual (CFEM), 4th Edition — bearing capacity and settlement analysis methods

Technical parameters

Parameter	Typical value
Typical bearing stratum (Halton Till)	Dense to very dense silty clay till, SPT N-value 30-50+
Allowable bearing capacity (intact till)	150-250 kPa per NBCC 2015, verified by in-situ testing
Depth to competent till (downtown core)	1.5-3.0 m below grade, variable with fill thickness
Groundwater depth (seasonal high)	1.8-3.5 m below grade in spring, deeper in summer
Seismic site class (typical)	Class C or D per NBCC 2015, dependent on shear wave velocity profile
Frost penetration depth (design)	1.2 m minimum per Ontario Building Code requirements
Potential expansive soils	Low risk in glacial till; localized clay pockets in alluvial zones near creeks

Questions and answers

What is the typical cost range for a shallow foundation design in St. Catharines?

For a standard residential or light commercial project in St. Catharines, the geotechnical scope for a shallow foundation design — including a site visit, two to three test pits or boreholes, bearing capacity analysis, and a stamped report — typically falls between CA$2,880 and CA$3,680. The exact figure depends on access constraints, the depth of investigation required, and whether additional testing such as plate load tests or laboratory consolidation analysis is needed.

How deep do footings need to be in St. Catharines to avoid frost heave?

The Ontario Building Code requires a minimum footing depth of 1.2 metres below finished grade for frost protection in the St. Catharines area. However, this is a minimum — the actual depth is governed by the depth to competent bearing soil. If the Halton Till is covered by 2 metres of fill, the footing must extend through the fill and bear on the till, even if that exceeds the frost depth requirement.

Can you design shallow foundations on the escarpment slopes in St. Catharines?

Shallow foundations on or near the Niagara Escarpment slopes require a more rigorous analysis than those on the flat plain. We assess not only bearing capacity and settlement but also global slope stability under static and seismic conditions. In many cases, a shallow foundation is feasible if set back sufficiently from the crest and founded on competent rock or dense till, but each site requires a site-specific geotechnical evaluation to confirm.
